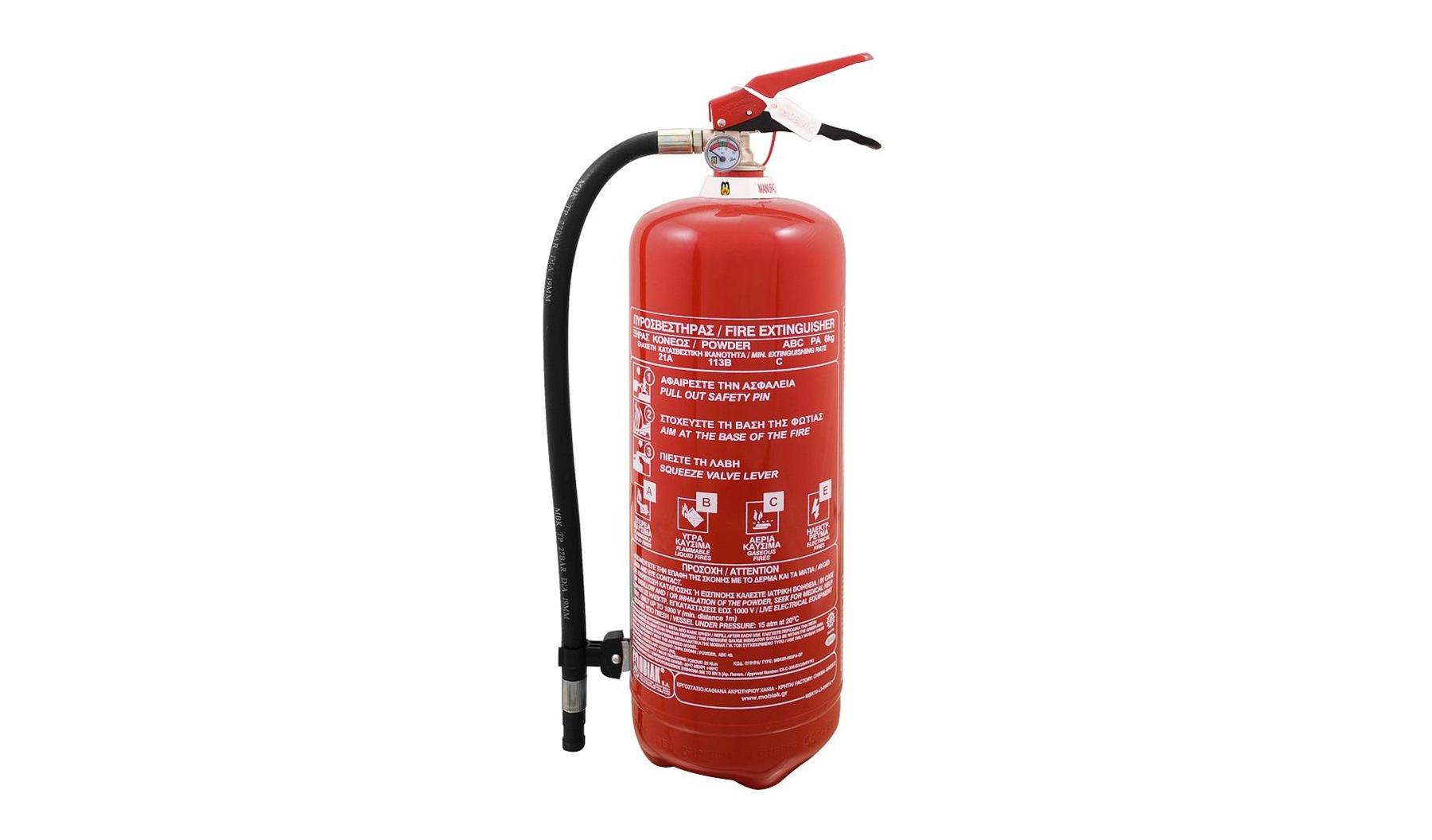

6Kg Dry Powder Fire Extinguisher

Add to WishlistAdd to Compare
SKU: 01.05.001 Categories: ,

6Kg Dry Powder Fire Extinguisher ABC 40%.
With single container and shutter with pressure gauge safety valve.

Specifications:
Capacity: 6Kg
Extinguishing capacity: 21A 113B C E
Extinguishing material: ABC 40% Dry Powder
Operating temperature: -30 ° C to 60 ° C
Average emptying time: 18.97sec
Test pressure: 26bar
Maximum allowable pressure: 18.00bar
Equipment volume: 7.50Lt
Container material: St12
Container height: 450 ± 5 mm
Container diameter: 160 ± 1.5 mm
Neck thread: 30 x 1.5 mm
Shutter material: HPb59-1
Safety valve: 19-26 bar
Paint: RAL 3000
Approx. Gross weight: 9.50Kg
Approx. Dimensions: 535 x 160 mm
Operating pressure at: 20 ° C 15bar
Range: Approx. 6m
Weight: 9kg
